Whether you are setting up your very first backyard zip line for your kids or planning an extended run for the family, understanding zip line slope and cable sag is the single most critical factor for both safety and performance. Getting these two measurements right guarantees a thrilling, smooth ride from launch to finish—without dangerous sudden stops or stalling out halfway through.

1. Understanding Zip Line Slope: The 3% to 6% Rule

The slope is the elevation drop of the cable from the starting anchor (launch tree) to the ending anchor (stop tree). As an industry standard for backyard recreational zip lines, your target slope should always be between 3% and 6%:

• Minimum Slope (3%): A 3% slope drops 3 feet for every 100 feet of distance. This is the gentlest ride—ideal for young children or beginners. Under 3%, riders often lose momentum and stall before reaching the end.
• Standard Slope (4%–5%): A 4% to 5% slope drops 4 to 5 feet per 100 feet. This offers the best balance of speed, excitement, and controlled braking.
• Maximum Safe Slope (6%): A 6% slope drops 6 feet per 100 feet. At 6%, riders reach high speeds and must have an active braking system, such as a stainless steel spring brake. Never exceed 6% slope on a backyard installation without commercial-grade arresting gear.

2. Understanding Cable Sag: The 2% Rule

Cable sag is the natural downward dip in the cable when loaded with a rider's weight. No matter how tightly you crank the cable, physics dictates that a cable under tension will always sag in the middle.

A properly tuned zip line must maintain at least 2% sag when supporting its maximum intended rider weight:

• On a 100ft zip line, the cable will sag at least 2 feet below its unloaded straight line when someone rides it.
• On a 150ft zip line, expect 3 feet of loaded sag.
• On a 200ft zip line, expect 4 feet of loaded sag.

Safety Warning: Never attempt to eliminate sag completely. An overtightened cable creates extreme tensility loads on your anchor trees, turnbuckles, and cable clamps, dramatically increasing the risk of hardware failure.

3. Quick Reference Setup Chart

Use this reference table to plan your tree-to-tree distances, required elevation drops, and expected cable sag:

4. How to Calculate Starting and Ending Anchor Heights

To calculate exactly where to mount your cable on Tree A (Start) and Tree B (End), use this formula:

Always verify the following rules of thumb before securing your hardware:

1. Check Natural Ground Slope: If your yard slopes downhill naturally, subtract the ground drop from your starting tree height. Use a line level or laser level for accurate yard measurements.
2. Safe Clearance: Under full rider load at the lowest sag point (typically around 60%–70% of the course length), riders' feet should hang at least 2 to 3 feet above the ground for seated riders, or a minimum of 7 feet from cable to ground.
3. Launch Platform Positioning: If building a launch platform, always mount it approximately 5 to 6 feet below the starting cable anchor so riders can comfortably step onto the trolley and seat without straining.

5. Video Guide: Step-by-Step Backyard Setup

Watch this complete walkthrough showing how to adjust cable tension, set anchors with tree protectors, and test ride safely:

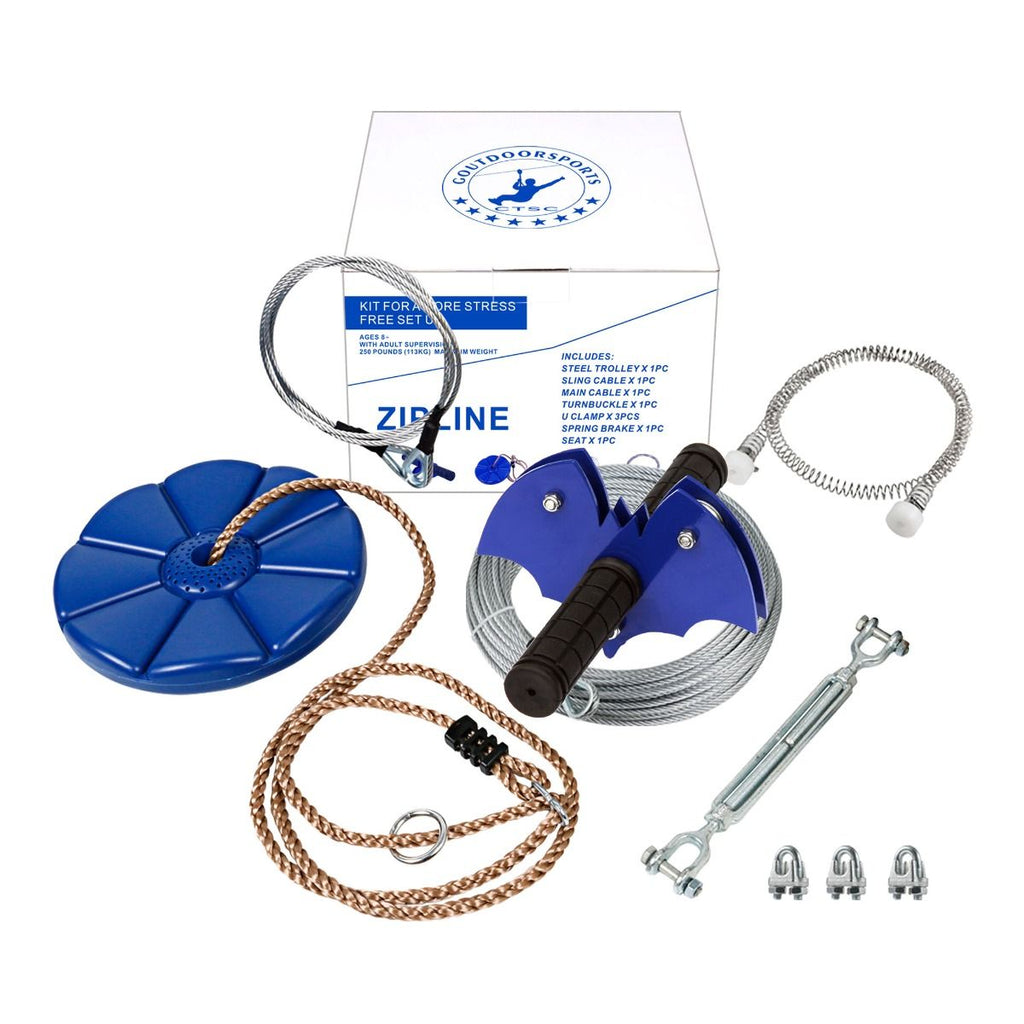

6. Recommended Gear for a Safe, Smooth Setup

Having the right hardware makes measuring slope, adjusting tension, and stopping safely effortless:
